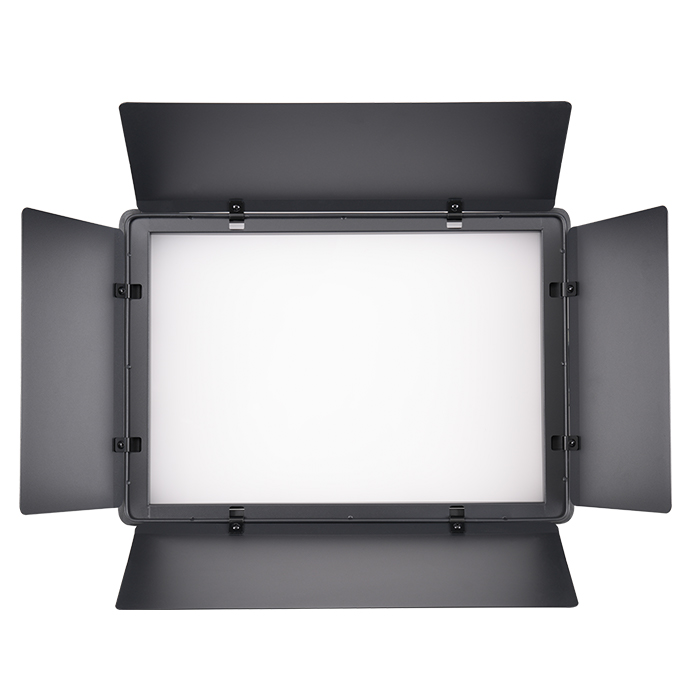

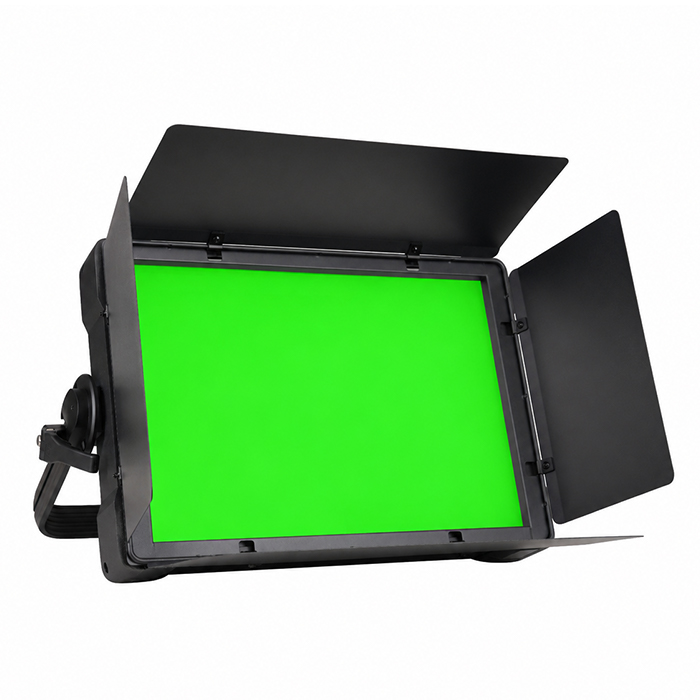

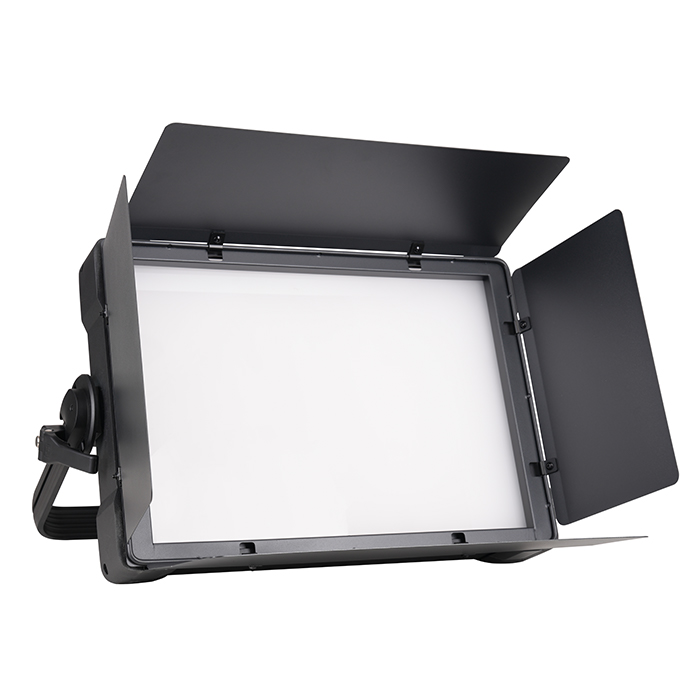

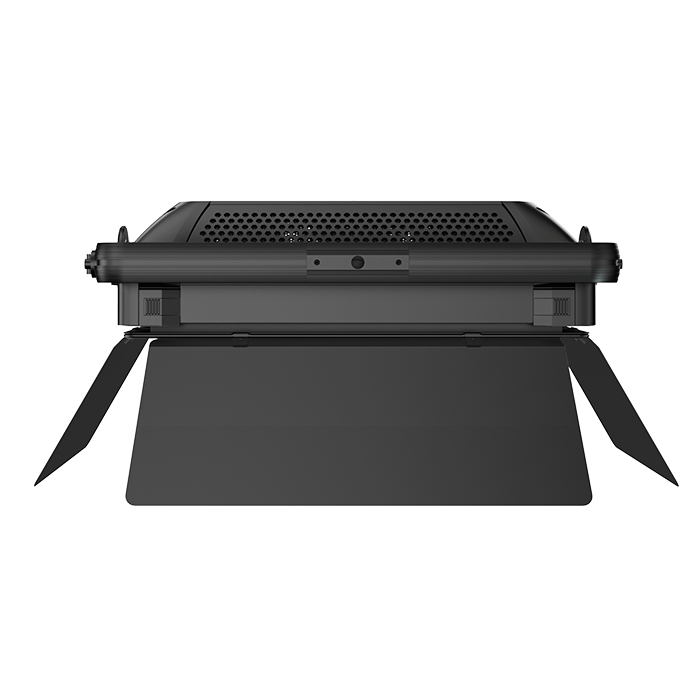

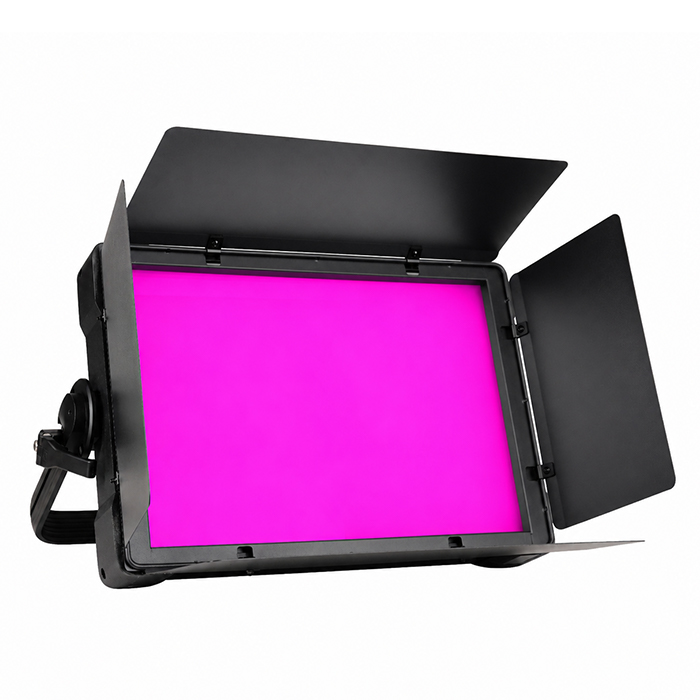

EA-TC340 400W Full-Spectrum LED Soft Panel Light
Powered by a professional 1350 × 0.9W full-spectrum LED (675 warm-white + 675 cool-white LEDs), the EA-TC340 delivers up to 31,506 lm with Ra ≥ 98 color rendering and a flexible 100° optical range. The IP30-rated housing is designed for professional indoor installations. DMX512 and RDM compatibility enable integration into professional lighting control systems. The rated light-source life is up to 50,000 hours.
EA-TC340
400W Full-Spectrum LED Soft Panel LightHigh-output full-spectrum soft light with calibrated white control for broadcast and studio production.
The EA-TC340 is a professional 400w full-spectrum led soft panel light developed for broadcast studios, film production, theatres and professional stage environments. Its 1350 × 0.9W full-spectrum LED (675 warm-white + 675 cool-white LEDs) produces up to 31,506 lm, providing reliable output for demanding production environments.
Color quality is specified at Ra ≥ 98. The color-temperature range is 2,800K-6,000K. The field angle is 100°.
Control options include DMX512 protocol, RDM protocol, master/slave mode, auto mode, manual mode, stand-alone programming mode.
The IP30-rated construction uses aluminum alloy + injection-molded housing. The supported operating-temperature range is -10°C to 45°C. The rated light-source life is 50,000 hours.
Features
Core performance, optical, control and construction capabilities of the EA-TC340.
1350 × 0.9W full-spectrum LED (675 warm-white + 675 cool-white LEDs)
Professional light source engineered for stage, theatre and event production.
31,506 lm Output
High-output performance for demanding professional lighting applications.
Ra ≥ 98
Specified color-rendering performance for consistent stage and production use.
2,800K-6,000K CCT
Color-temperature capability for creative and production lighting requirements.
100° Optical Range
Flexible optical coverage for the fixture’s intended beam, spot, wash or profile applications.
IP30 Protection
Designed for professional indoor lighting installations.
DMX512 / RDM Control
Supports professional lighting-system integration and multiple operating modes.
50,000 hours Rated Life
Long rated light-source service life for professional project use.
Specifications
Light Source
- Light Source
- 1350 × 0.9W full-spectrum LED (675 warm-white + 675 cool-white LEDs)
- Average Light Source Life
- 50,000 hours
- Color Temperature
- 2,800K-6,000K
- Color Tolerance
- SDCM ≤ 3
Photometric Data
- Luminous Flux
- 31,506 lm
- Color Rendering Index
- Ra ≥ 98
- Field Angle
- 100°
Control / Connections
- Control
- DMX512 protocol, RDM protocol, master/slave mode, auto mode, manual mode, stand-alone programming mode
- DMX Channel Modes
- Basic mode4CH, Standard mode6CH

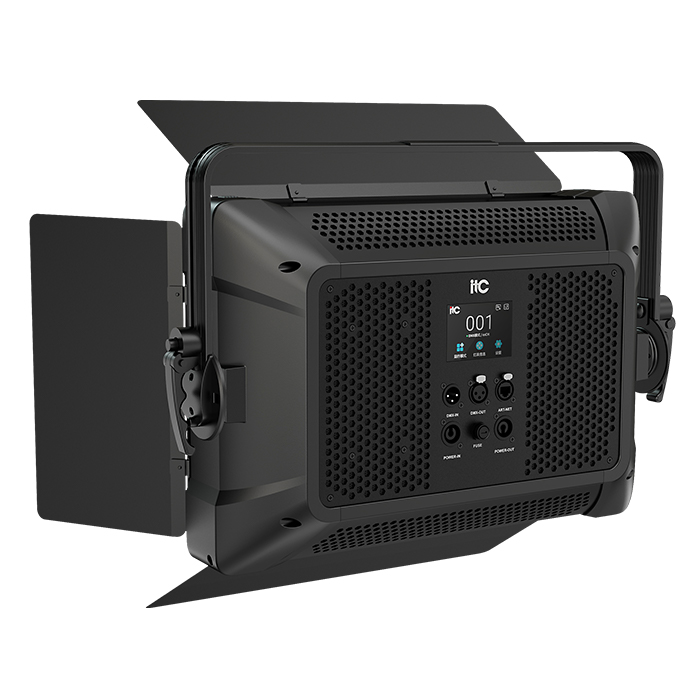

- Signal Connections
- 1 DMX512 input, 1 DMX512 output
- Network Interface
- 1 RJ45 Ethernet port
- Power Connections
- 1 power input, 1 power output
Electrical
- Input Voltage
- AC 110–240V, 50/60Hz
- Rated Power
- 400W
- Power Factor
- PF ≥ 0.90
Construction / Environment
- Housing Material
- Aluminum alloy + injection-molded housing
- IP Rating
- IP30
- Operating Temperature
- -10°C to 45°C
Size / Weight
- Fixture Dimensions (L x W x H)
- 579×392×153mm
- Package Dimensions (L x W x H)
- 645×460×230mm(carton)
- Package Gross Weight
- 13.8kg
- Fixture Net Weight
- 11.9kg
DMX Modes
Available DMX channel configurations for standard fixture operation and expanded professional control.
| Mode | Channels | Notes |
|---|---|---|
| Basic mode | 4CH | Extracted from source Excel; detailed trait mapping to be confirmed in user manual |
| Standard mode | 6CH | Extracted from source Excel; detailed trait mapping to be confirmed in user manual |
Detailed channel-function mapping should be confirmed against the official manufacturer user manual before publication.
