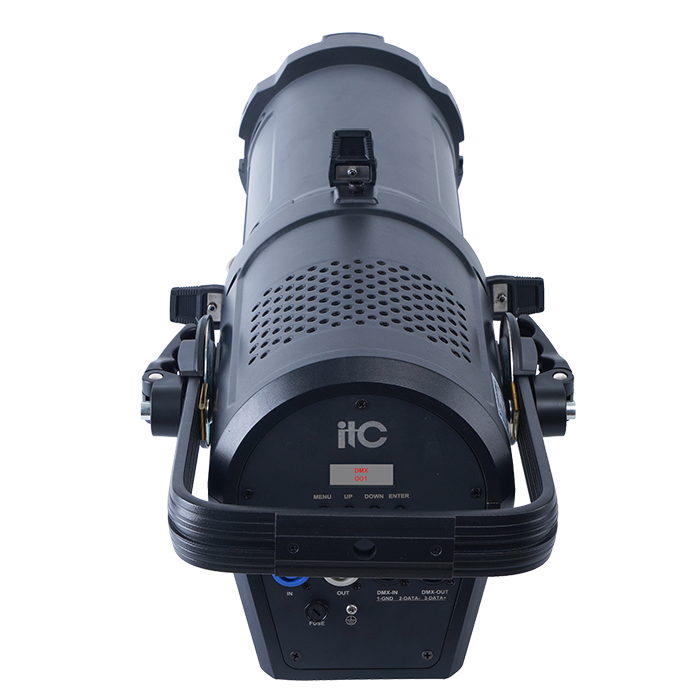

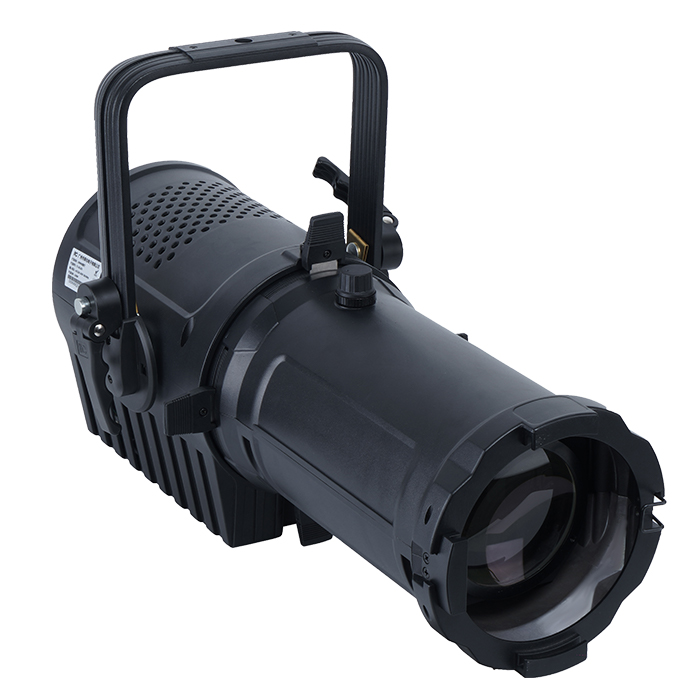

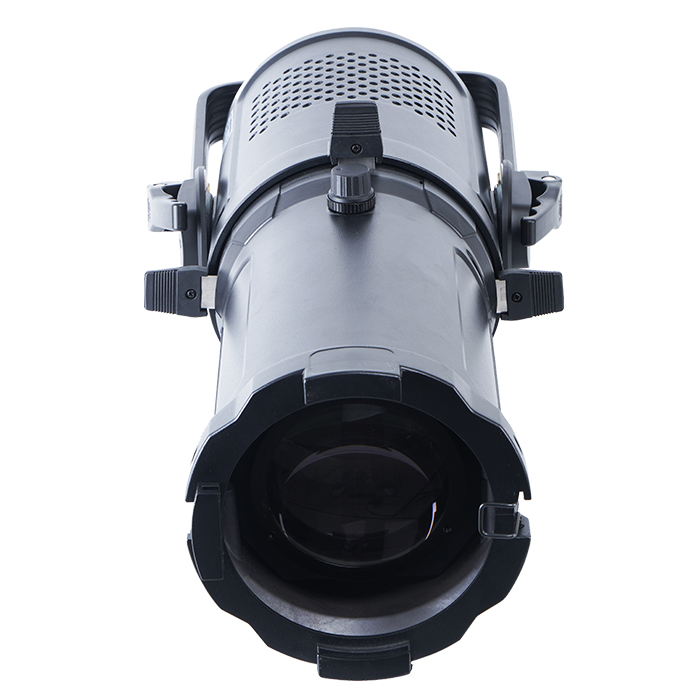

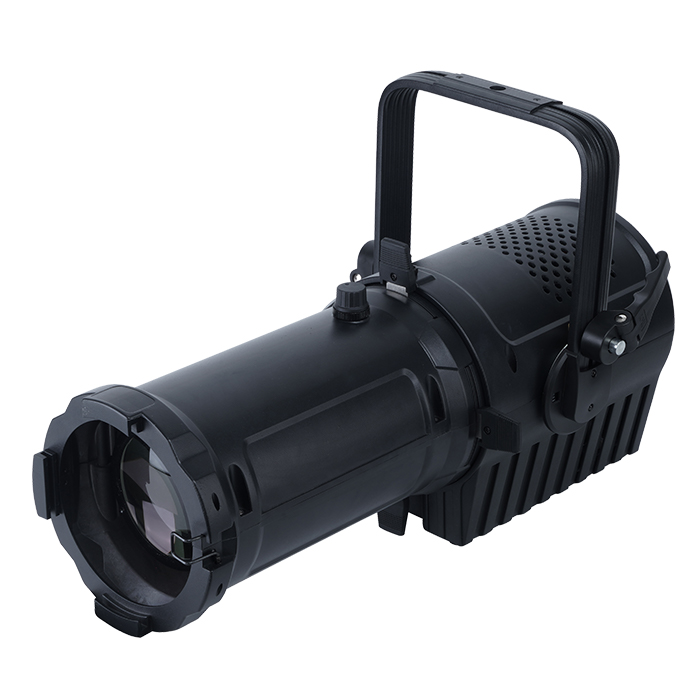

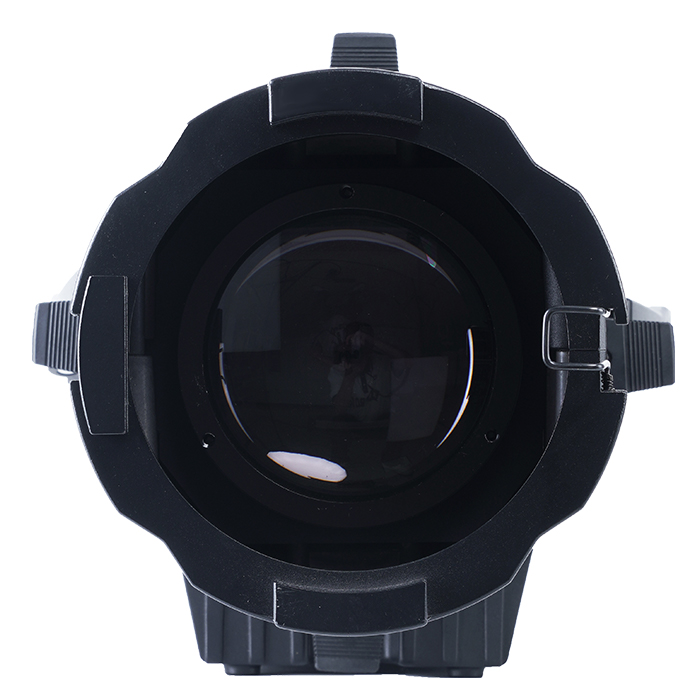

SL-572D LED Ellipsoidal Profile Light
Powered by a professional 200W white LED COB, the SL-572D delivers up to 5,276 lm with Ra ≥ 90 R9 ≥ 60 R15 ≥ 91 color rendering and a flexible 19° optical range. A motorized framing system enables precise shutter cuts and projection control. The IP20-rated housing is designed for professional indoor installations. DMX512 and RDM compatibility enable integration into professional lighting control systems. The rated light-source life is up to 50,000 hours.
SL-572D
LED Ellipsoidal Profile LightHigh-CRI ellipsoidal projection with flexible beam control and professional show integration.
The SL-572D is a professional led ellipsoidal profile light developed for theatres, studios, stages, houses of worship and live-event venues. Its 200W white LED COB produces up to 5,276 lm, providing reliable output for demanding production environments.
Color quality is specified at Ra ≥ 90 R9 ≥ 60 R15 ≥ 91. The color-temperature range is 6,000K. The beam angle is 19°.
The motorized framing system supports accurate shutter cuts and controlled projection shapes. Control options include DMX512 protocol, RDM protocol, master/slave mode, manual mode.
The IP20-rated construction uses aluminium die-castings. The supported operating-temperature range is -10°C to 45°C. The rated light-source life is 50,000 hours.
Features
Core performance, optical, control and construction capabilities of the SL-572D.
200W white LED COB
Professional light source engineered for stage, theatre and event production.
5,276 lm Output
High-output performance for demanding professional lighting applications.
Ra ≥ 90 R9 ≥ 60 R15 ≥ 91
Specified color-rendering performance for consistent stage and production use.
6,000K CCT
Color-temperature capability for creative and production lighting requirements.
19° Optical Range
Flexible optical coverage for the fixture’s intended beam, spot, wash or profile applications.
Motorized Framing System
Enables precise shutter cuts, shaped projection and controlled beam placement.
IP20 Protection
Designed for professional indoor lighting installations.
DMX512 / RDM Control
Supports professional lighting-system integration and multiple operating modes.
Specifications
Light Source
- Light Source
- 200W white LED COB
- Average Light Source Life
- 50,000 hours
- Color Temperature
- 6,000K
- Color Tolerance
- SDCM ≤ 3
Photometric Data
- Luminous Flux
- 5,276 lm
- Color Rendering Index
- Ra ≥ 90 R9 ≥ 60 R15 ≥ 91
- Beam Angle
- 19°
Control / Connections
- Control
- DMX512 protocol, RDM protocol, master/slave mode, manual mode
- DMX Channel Modes
- Standard mode2CH

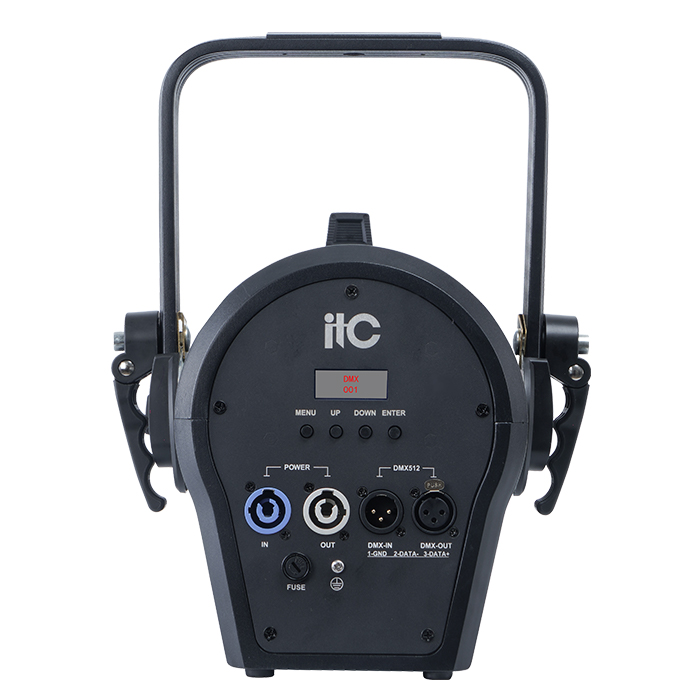

- Signal Connections
- 1 DMX512 input, 1 DMX512 output
- Power Connections
- 1 power input, 1 power output
Electrical
- Input Voltage
- AC 110–240V, 50/60Hz
- Rated Power
- 200W
- Power Factor
- PF ≥ 0.98
Construction / Environment
- Housing Material
- Aluminium die-castings
- IP Rating
- IP20
- Operating Temperature
- -10°C to 45°C
Size / Weight
- Fixture Dimensions (L x W x H)
- 630×273×236mm
- Package Dimensions (L x W x H)
- 700×330×300mm(carton)
- Package Gross Weight
- 9.4kg (1 pc)
- Fixture Net Weight
- 7.7kg
DMX Modes
Available DMX channel configurations for standard fixture operation and expanded professional control.
| Mode | Channels | Notes |
|---|---|---|
| Standard mode | 2CH | Extracted from source Excel; detailed trait mapping to be confirmed in user manual |
Detailed channel-function mapping should be confirmed against the official manufacturer user manual before publication.
