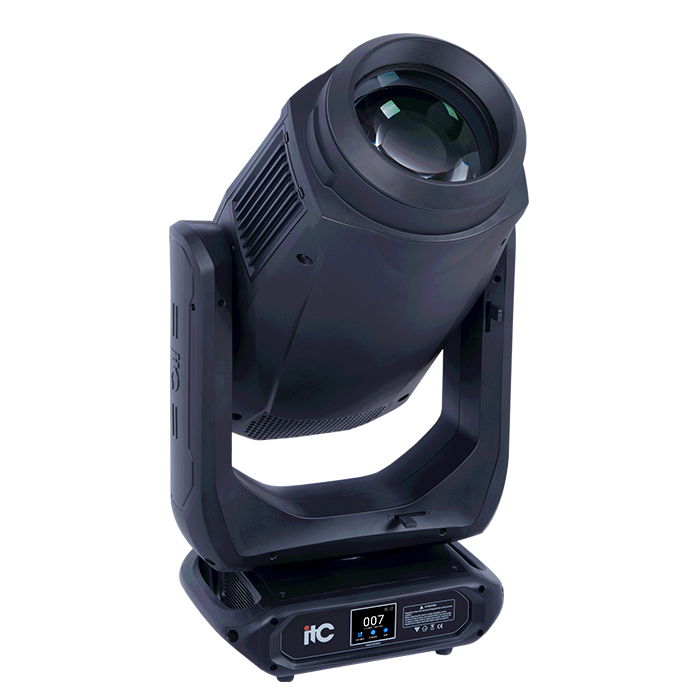

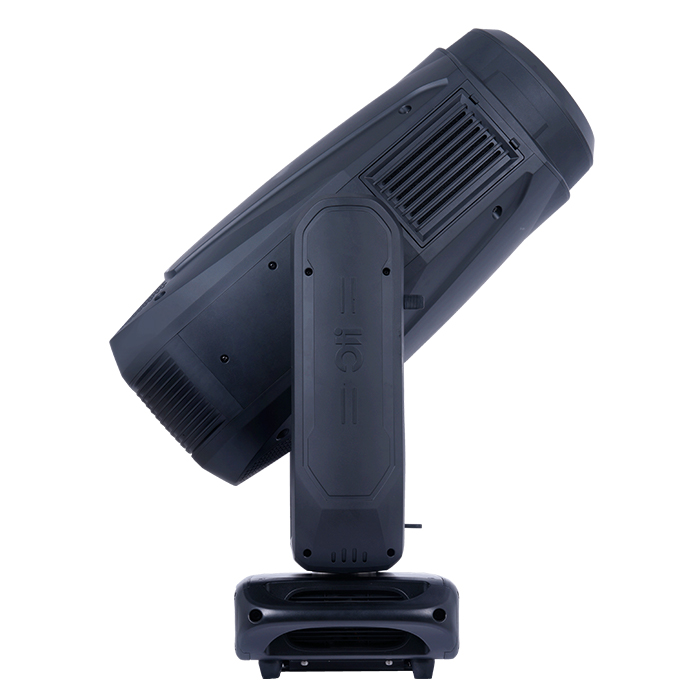

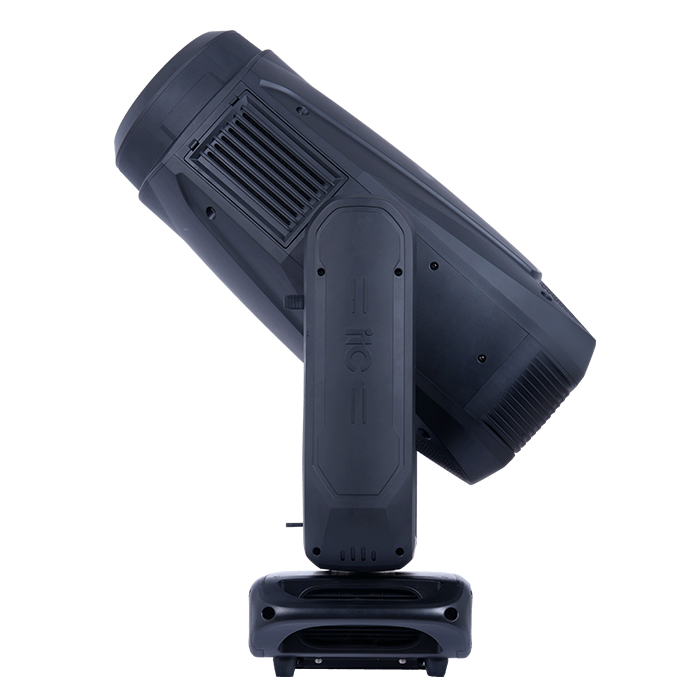

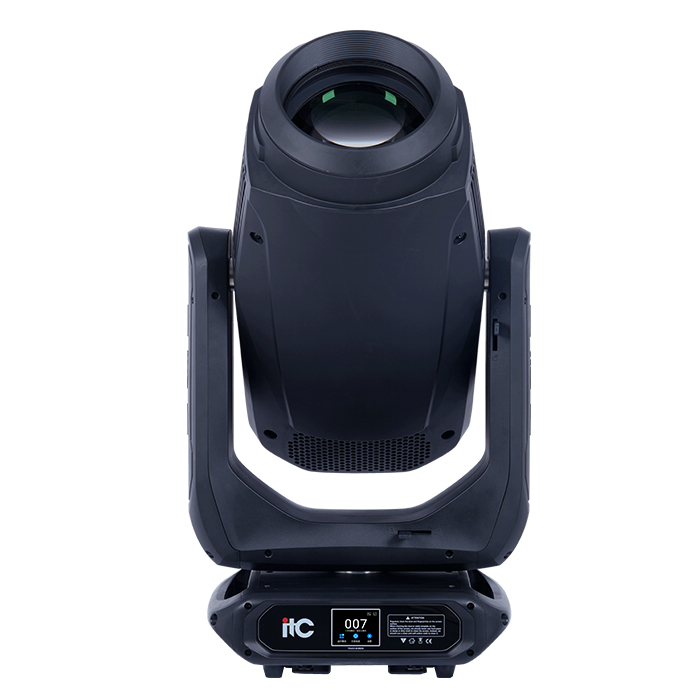

EA-TO9485 LED Profile Wash Moving Head Light
Powered by a professional 1450W high-CRI LED light engine, the EA-TO9485 delivers up to 20,000 lm with Ra ≥ 96, R9 ≥ 95 color rendering and a flexible 5°–50° optical range. CMY color mixing and CTO control support refined color design. A motorized framing system enables precise shutter cuts and projection control. The IP20-rated housing is designed for professional indoor installations. DMX512 and RDM compatibility enable integration into professional lighting control systems. The rated light-source life is up to 20,000 hours.
EA-TO9485
LED Profile Wash Moving Head LightHigh-CRI profile and wash performance with motorized framing and refined CMY color control.
The EA-TO9485 is a professional led profile wash moving head light developed for theatres, concerts, live events and cultural tourism productions. Its 1450W high-CRI LED light engine produces up to 20,000 lm, providing reliable output for demanding production environments.
Color quality is specified at Ra ≥ 96, R9 ≥ 95. The color-temperature range is 6,500K. The beam angle is 5°–50°.
CMY color mixing and CTO control provide flexible color design. The motorized framing system supports accurate shutter cuts and controlled projection shapes. Control options include DMX512 protocol, RDM protocol, Art-net protocol, master/slave mode, auto mode, sound-active mode, manual mode, stand-alone programming mode.
The IP20-rated construction uses flame-retardant high-temperature plastic. The supported operating-temperature range is -10°C to 45°C. The rated light-source life is 20,000 hours.
Features
Core performance, optical, control and construction capabilities of the EA-TO9485.
1450W high-CRI LED light engine
Professional light source engineered for stage, theatre and event production.
20,000 lm Output
High-output performance for demanding professional lighting applications.
Ra ≥ 96, R9 ≥ 95
Specified color-rendering performance for consistent stage and production use.
6,500K CCT
Color-temperature capability for creative and production lighting requirements.
5°–50° Optical Range
Flexible optical coverage for the fixture’s intended beam, spot, wash or profile applications.
CMY Mixing + CTO Control
Supports refined color design, smooth transitions and adjustable white balance.
Motorized Framing System
Enables precise shutter cuts, shaped projection and controlled beam placement.
IP20 Protection
Designed for professional indoor lighting installations.
Specifications
Light Source
- Light Source
- 1450W high-CRI LED light engine
- Average Light Source Life
- 20,000 hours
- Color Temperature
- 6,500K
Photometric Data
- Luminous Flux
- 20,000 lm
- Color Rendering Index
- Ra ≥ 96, R9 ≥ 95
- Beam Angle
- 5°–50°
Control / Connections
- Control
- DMX512 protocol, RDM protocol, Art-net protocol, master/slave mode, auto mode, sound-active mode, manual mode, stand-alone programming mode
- DMX Channel Modes
- Basic mode27CH, Standard mode33CH
- Sound Sensitivity
- 65–130 dB

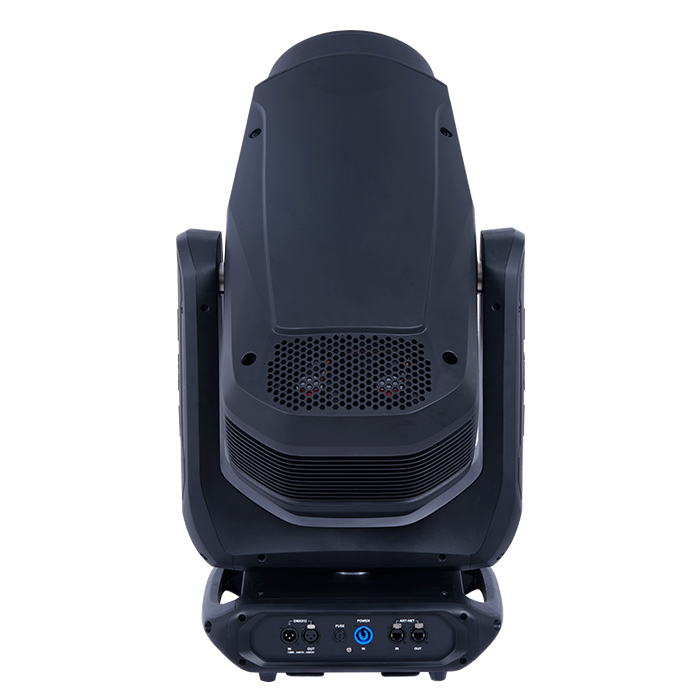

- Signal Connections
- 1 DMX512 input, 1 DMX512 output, 2 RJ45 Ethernet port
- Power Connections
- 1 power input
Electrical
- Input Voltage
- AC 110–240V, 50/60Hz
- Rated Power
- 1600W
- Power Factor
- PF ≥ 0.95
Construction / Environment
- Housing Material
- flame-retardant high-temperature plastic
- IP Rating
- IP20
- Operating Temperature
- -10°C to 45°C
Size / Weight
- Fixture Dimensions (L x W x H)
- 442×287×841mm
- Package Dimensions (L x W x H)
- 750×530×745mm(carton)
- Package Gross Weight
- 52.8kg (1 pc)
- Fixture Net Weight
- 45.8kg
DMX Modes
Available DMX channel configurations for standard fixture operation and expanded professional control.
| Mode | Channels | Notes |
|---|---|---|
| Basic mode | 27CH | Extracted from source Excel; detailed trait mapping to be confirmed in user manual |
| Standard mode | 33CH | Extracted from source Excel; detailed trait mapping to be confirmed in user manual |
Detailed channel-function mapping should be confirmed against the official manufacturer user manual before publication.
