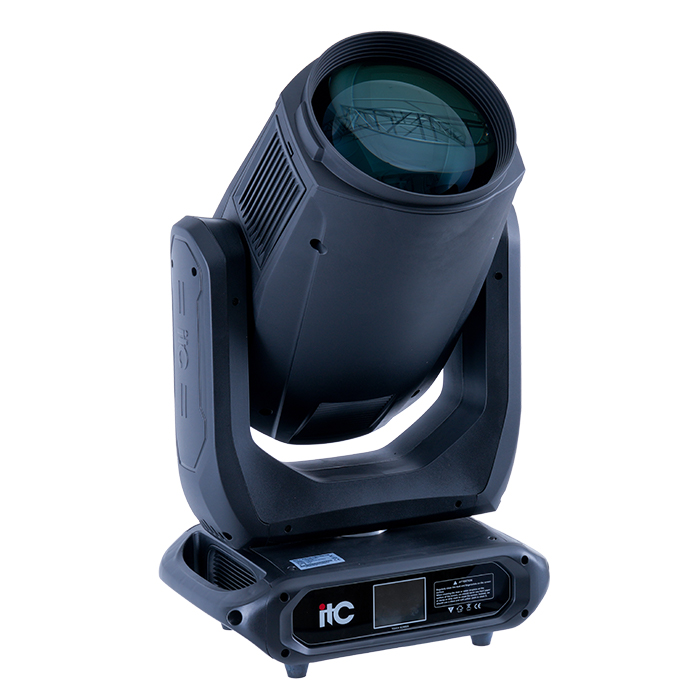

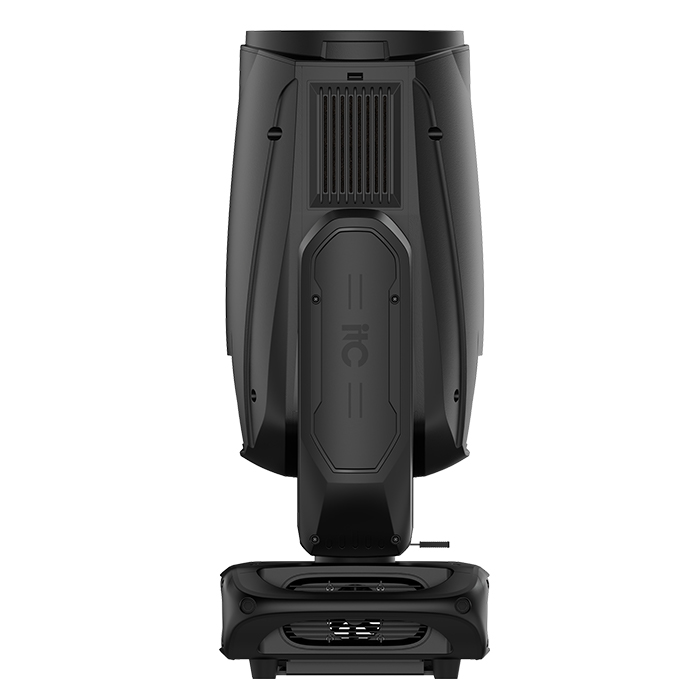

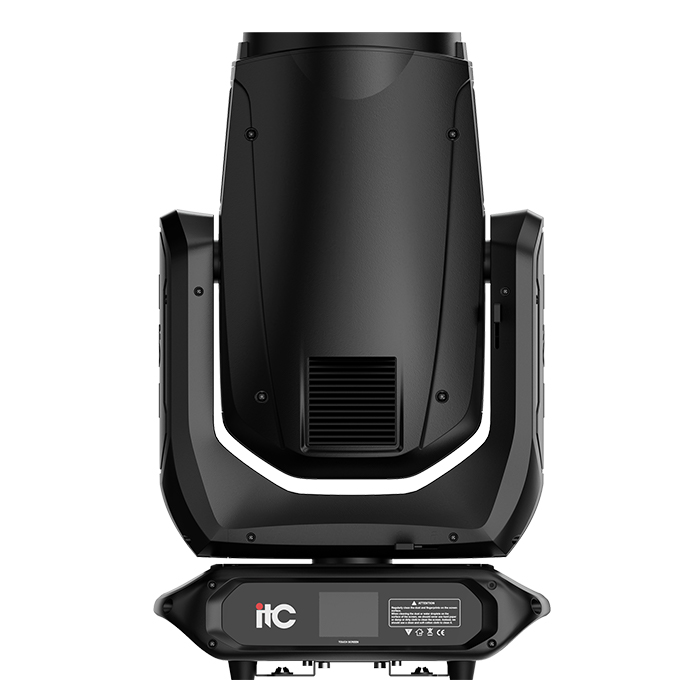

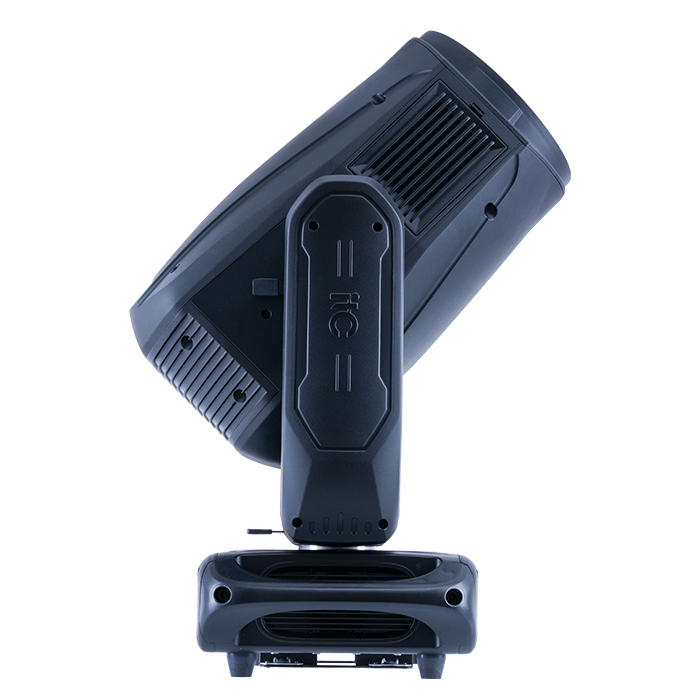

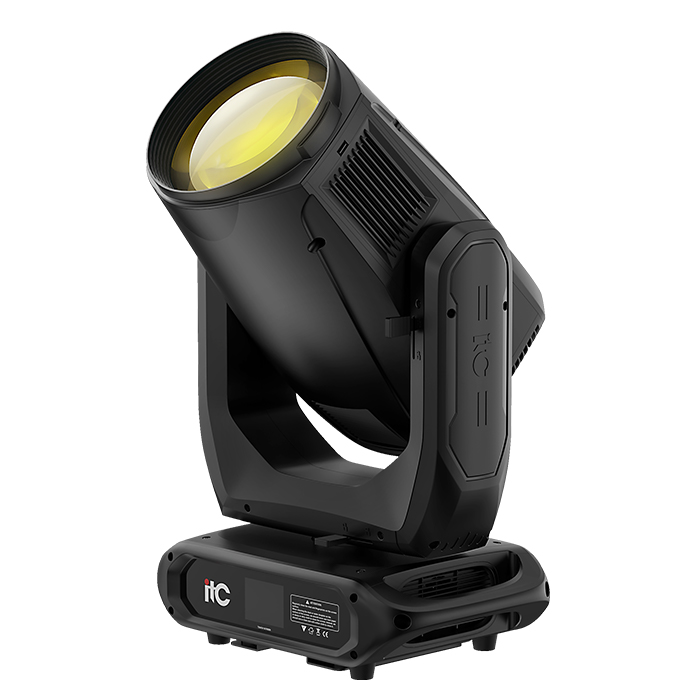

EA-TC548 Beam Moving Head Light
Powered by a professional 420W USHIO lamp, the EA-TC548 delivers up to 19,500 lm with Ra ≥ 80 color rendering and a flexible 1.8° optical range. Integrated prism effects add aerial texture and layered visual impact. The IP20-rated housing is designed for professional indoor installations. DMX512 and RDM compatibility enable integration into professional lighting control systems. The rated light-source life is up to 4,000 hours.
EA-TC548
Beam Moving Head LightHigh-intensity narrow-beam performance with dynamic prism effects and professional control.
The EA-TC548 is a professional beam moving head light developed for concerts, theatres, live events and entertainment venues. Its 420W USHIO lamp produces up to 19,500 lm, providing reliable output for demanding production environments.
Color quality is specified at Ra ≥ 80. The color-temperature range is 7,800K. The beam angle is 1.8°.
Prism effects create layered aerial textures and dynamic beam patterns. Control options include DMX512 protocol, RDM protocol, master/slave mode, auto mode, sound-active mode, manual mode, stand-alone programming mode.
The IP20-rated construction uses flame-retardant high-temperature plastic+molded alloy material. The supported operating-temperature range is -10°C to 45°C. The rated light-source life is 4,000 hours.
Features
Core performance, optical, control and construction capabilities of the EA-TC548.
420W USHIO lamp
Professional light source engineered for stage, theatre and event production.
19,500 lm Output
High-output performance for demanding professional lighting applications.
Ra ≥ 80
Specified color-rendering performance for consistent stage and production use.
7,800K CCT
Color-temperature capability for creative and production lighting requirements.
1.8° Optical Range
Flexible optical coverage for the fixture’s intended beam, spot, wash or profile applications.
Integrated Prism Effects
Adds aerial beam texture, layered projection and dynamic visual impact.
IP20 Protection
Designed for professional indoor lighting installations.
DMX512 / RDM Control
Supports professional lighting-system integration and multiple operating modes.
Specifications
Light Source
- Light Source
- 420W USHIO lamp
- Average Light Source Life
- 4,000 hours
- Color Temperature
- 7,800K
Photometric Data
- Luminous Flux
- 19,500 lm
- Color Rendering Index
- Ra ≥ 80
- Beam Angle
- 1.8°
Control / Connections
- Control
- DMX512 protocol, RDM protocol, master/slave mode, auto mode, sound-active mode, manual mode, stand-alone programming mode
- DMX Channel Modes
- Basic mode13CH, Standard mode16CH
- Signal Connections
- 1 DMX512 input, 1 DMX512 output, 2 RJ45 Ethernet port
- Power Connections
- 1 power input, 1 power output
Electrical
- Input Voltage
- AC 110–240V, 50/60Hz
- Rated Power
- 560W
- Power Factor
- PF ≥ 0.95
Construction / Environment
- Housing Material
- flame-retardant high-temperature plastic+molded alloy material
- IP Rating
- IP20
- Operating Temperature
- -10°C to 45°C
Size / Weight
- Fixture Dimensions (L x W x H)
- 393×269×642mm
- Package Dimensions (L x W x H)
- 555×480×640mm(carton)
- Package Gross Weight
- 25.3kg
- Fixture Net Weight
- 22.3kg
DMX Modes
Available DMX channel configurations for standard fixture operation and expanded professional control.
| Mode | Channels | Notes |
|---|---|---|
| Basic mode | 13CH | Extracted from source Excel; detailed trait mapping to be confirmed in user manual |
| Standard mode | 16CH | Extracted from source Excel; detailed trait mapping to be confirmed in user manual |
Detailed channel-function mapping should be confirmed against the official manufacturer user manual before publication.
