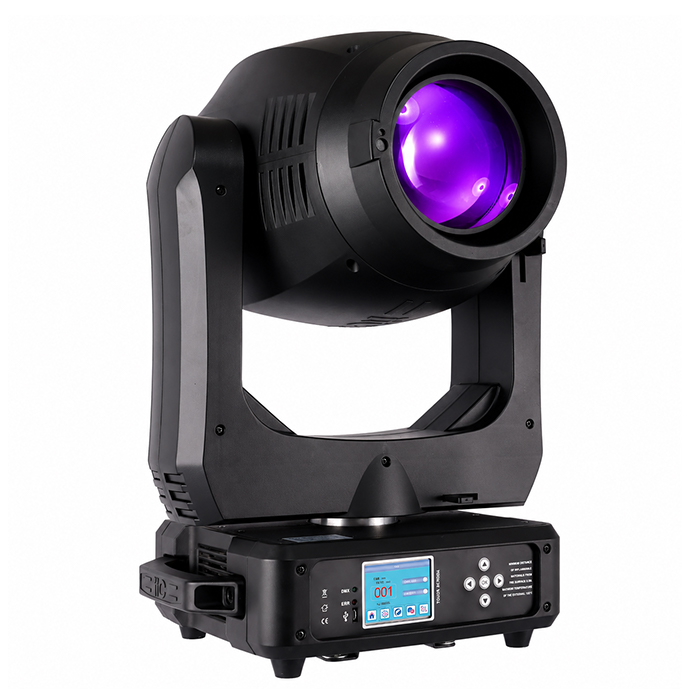

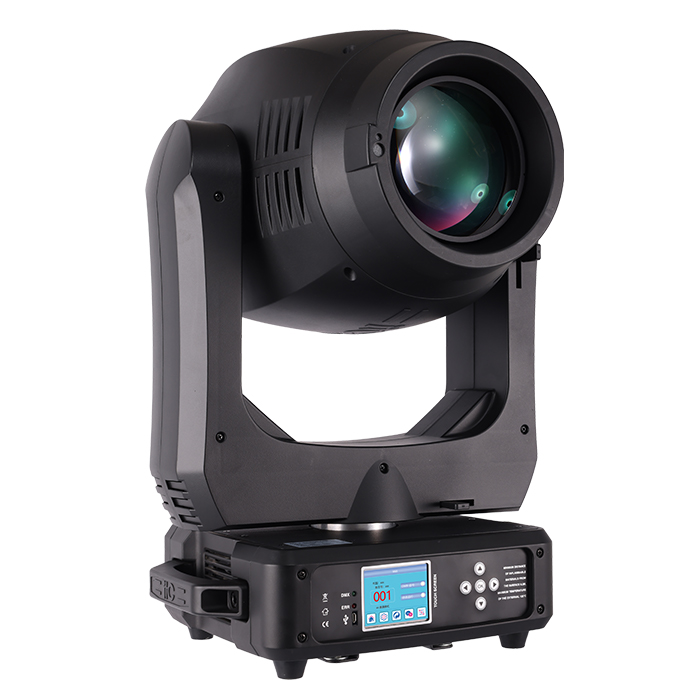

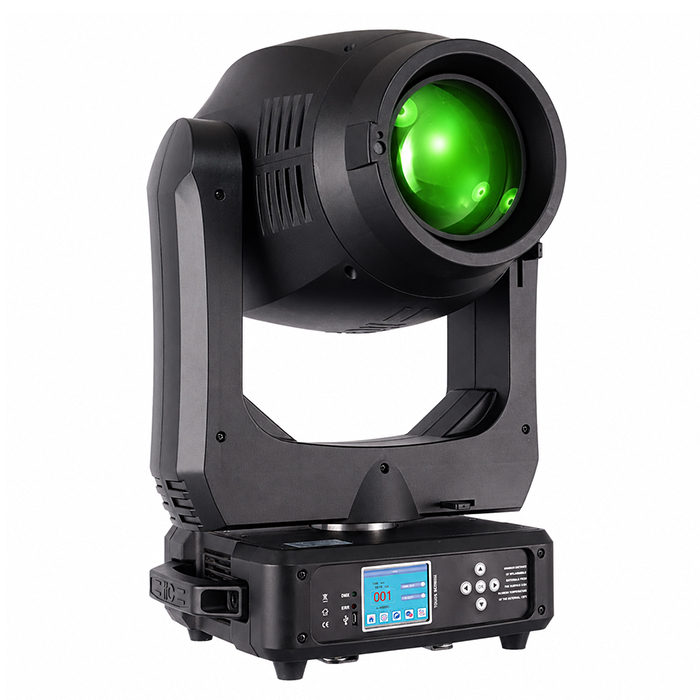

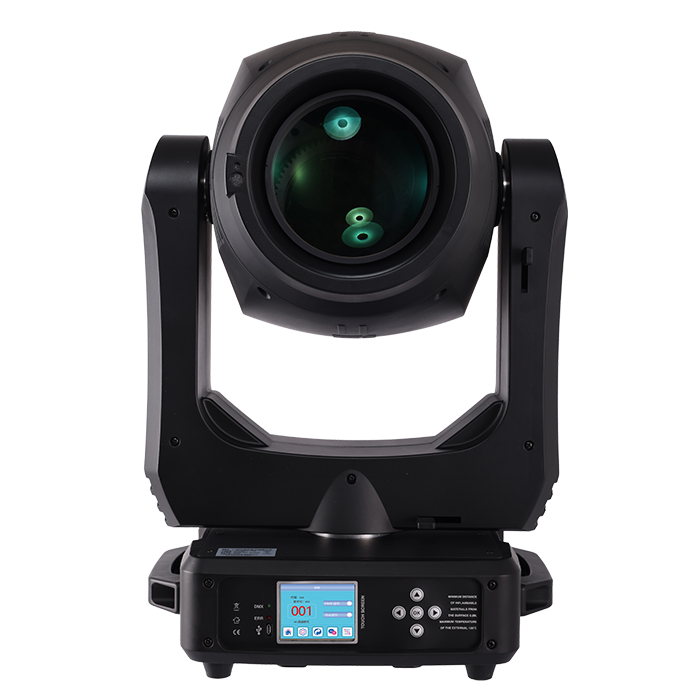

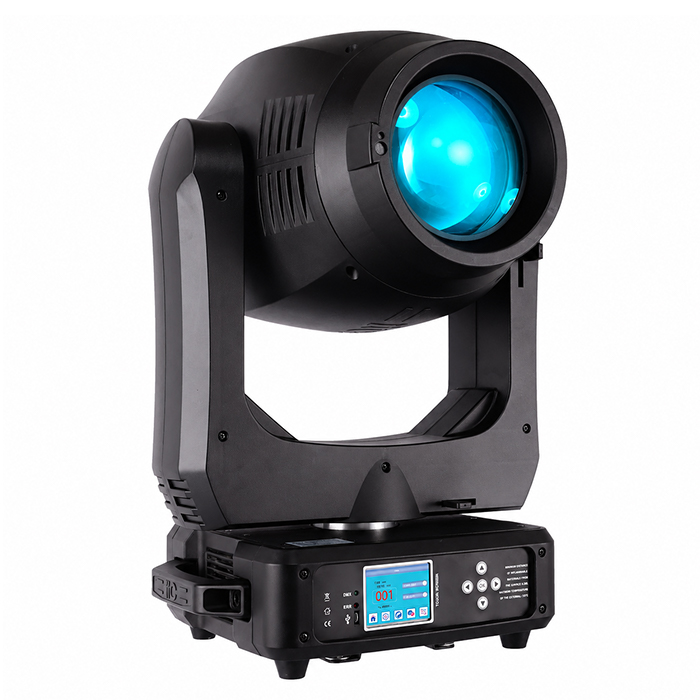

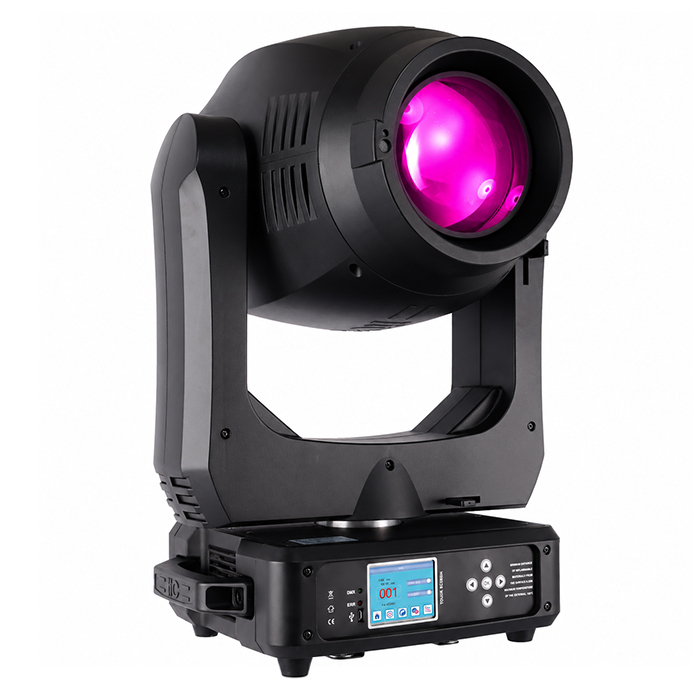

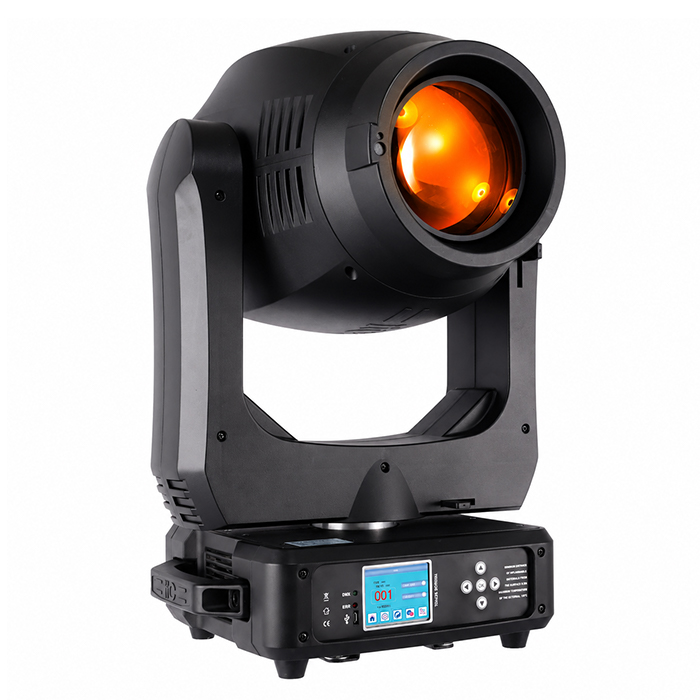

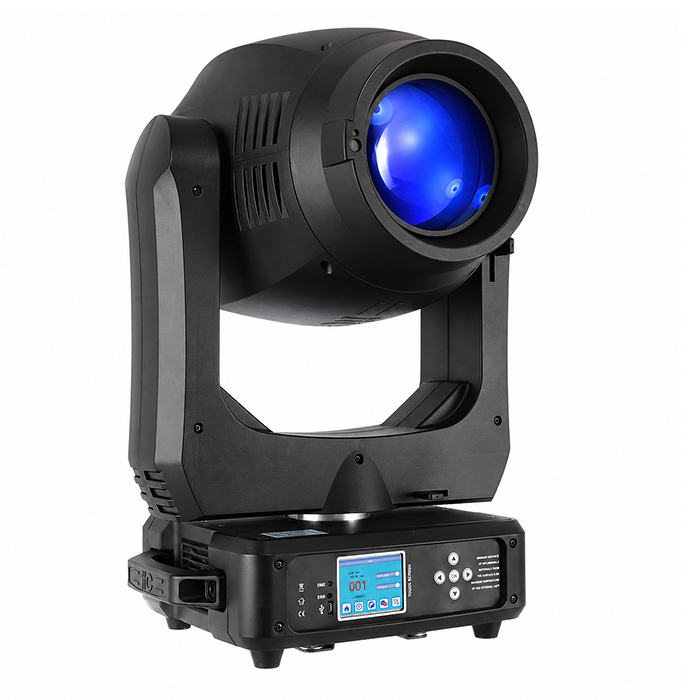

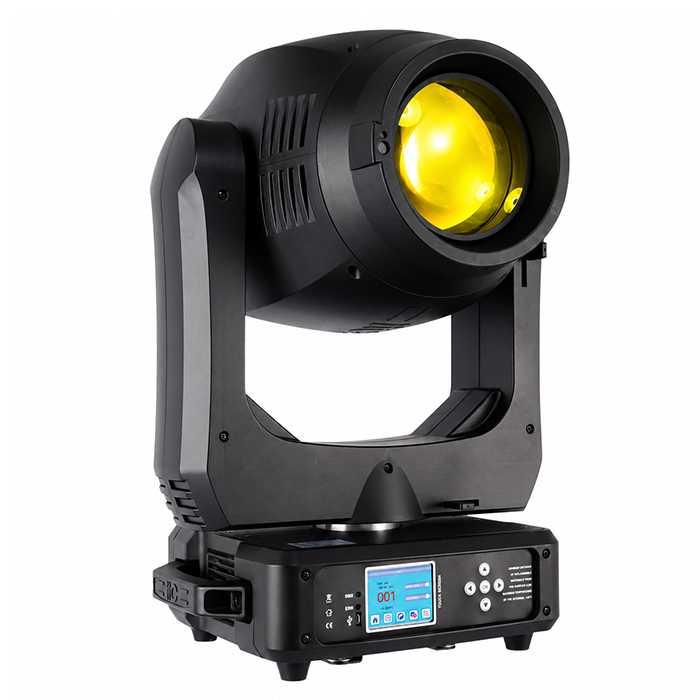

SL-381B 3-in-1 Beam Spot Wash Moving Head Light
Powered by a professional 380W PHILIPS lamp, the SL-381B delivers up to 21,000 lm with Ra ≥ 80 color rendering and a flexible Beam: 0°–2.5°; Pattern: 2.5°–25°; Dyeing: 6°–42° optical range. Integrated prism effects add aerial texture and layered visual impact. The IP20-rated housing is designed for professional indoor installations. DMX512 and RDM compatibility enable integration into professional lighting control systems. The rated light-source life is up to 1,500 hours.
SL-381B
3-in-1 Beam Spot Wash Moving Head LightIntegrated beam, spot and wash performance for flexible stage and event production.
The SL-381B is a professional 3-in-1 beam spot wash moving head light developed for concerts, theatres, live events and entertainment venues. Its 380W PHILIPS lamp produces up to 21,000 lm, providing reliable output for demanding production environments.
Color quality is specified at Ra ≥ 80. The color-temperature range is 7,800K. The beam angle is Beam: 0°–2.5°; Pattern: 2.5°–25°; Dyeing: 6°–42°.
Prism effects create layered aerial textures and dynamic beam patterns. Control options include DMX512 protocol, RDM protocol, master/slave mode, auto mode, sound-active mode, manual mode, stand-alone programming mode.
The IP20-rated construction uses high-temperature plastic. The supported operating-temperature range is -10°C to 45°C. The rated light-source life is 1,500 hours.
Features
Core performance, optical, control and construction capabilities of the SL-381B.
380W PHILIPS lamp
Professional light source engineered for stage, theatre and event production.
21,000 lm Output
High-output performance for demanding professional lighting applications.
Ra ≥ 80
Specified color-rendering performance for consistent stage and production use.
7,800K CCT
Color-temperature capability for creative and production lighting requirements.
Beam: 0°–2.5°; Pattern: 2.5°–25°; Dyeing: 6°–42° Optical Range
Flexible optical coverage for the fixture’s intended beam, spot, wash or profile applications.
Integrated Prism Effects
Adds aerial beam texture, layered projection and dynamic visual impact.
IP20 Protection
Designed for professional indoor lighting installations.
DMX512 / RDM Control
Supports professional lighting-system integration and multiple operating modes.
Specifications
Light Source
- Light Source
- 380W PHILIPS lamp
- Average Light Source Life
- 1,500 hours
- Color Temperature
- 7,800K
- Source Color Tolerance
- SDCM ≤ 5
- Ballast
- electronic ballast
Photometric Data
- Luminous Flux
- 21,000 lm
- Color Rendering Index
- Ra ≥ 80
- Beam Angle
- Beam: 0°–2.5°; Pattern: 2.5°–25°; Dyeing: 6°–42°
Control / Connections
- Control
- DMX512 protocol, RDM protocol, master/slave mode, auto mode, sound-active mode, manual mode, stand-alone programming mode
- DMX Channel Modes
- Basic mode18CH, Standard mode22CH

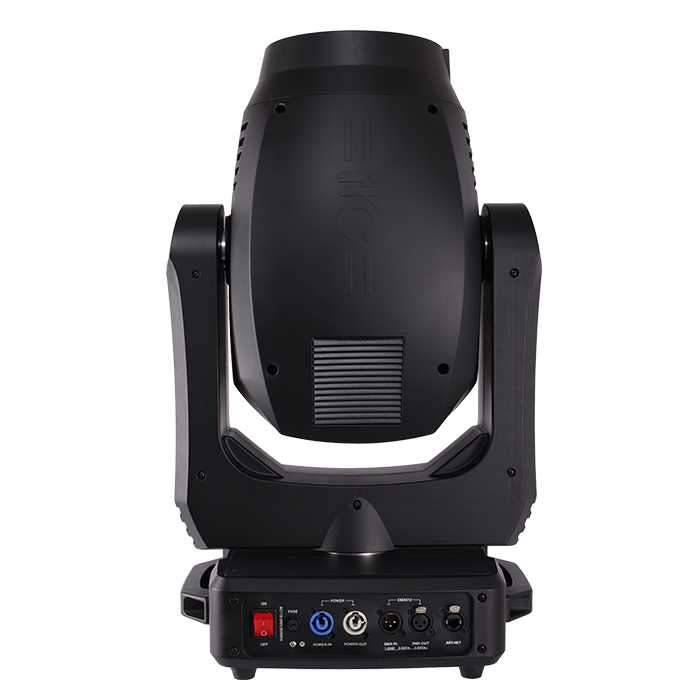

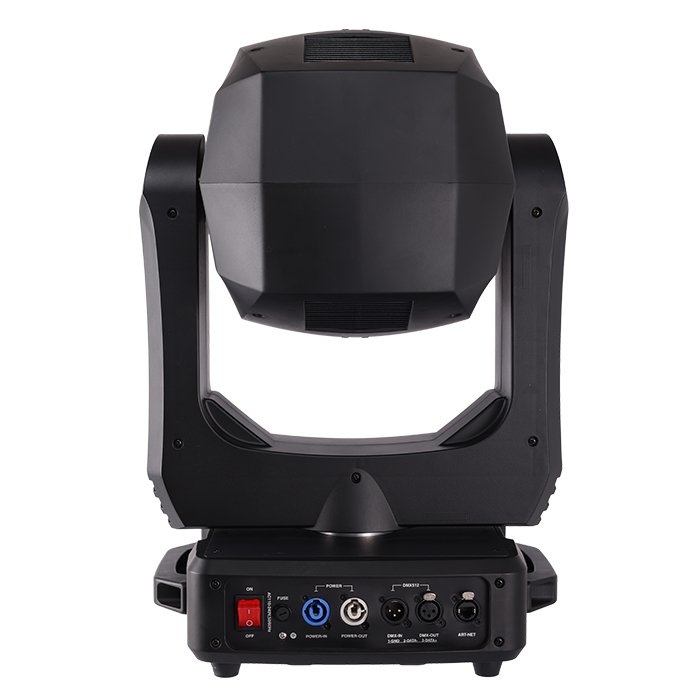

- Signal Connections
- 1 DMX512 input, 1 DMX512 output
- Power Connections
- 1 power input, 1 power output
Electrical
- Input Voltage
- AC 110–240V, 50/60Hz
- Rated Power
- 480W
- Power Factor
- PF ≥ 0.95
Construction / Environment
- Housing Material
- high-temperature plastic
- IP Rating
- IP20
- Operating Temperature
- -10°C to 45°C
Size / Weight
- Fixture Dimensions (L x W x H)
- 390×275×630mm
- Package Dimensions (L x W x H)
- 515×480×640mm(carton)
- Package Gross Weight
- 23.5kg
- Fixture Net Weight
- 20kg
DMX Modes
Available DMX channel configurations for standard fixture operation and expanded professional control.
| Mode | Channels | Notes |
|---|---|---|
| Basic mode | 18CH | Extracted from source Excel; detailed trait mapping to be confirmed in user manual |
| Standard mode | 22CH | Extracted from source Excel; detailed trait mapping to be confirmed in user manual |
Detailed channel-function mapping should be confirmed against the official manufacturer user manual before publication.
